UV DTF Roll to Roll Printer

U600 UV DTF Printer

Product Summary

The GT-U600 UV DTF Printer is a roll-to-roll UV DTF (Direct-to-Film) printing solution designed to print high-quality color graphics onto special PET transfer film, which can then be transferred to hard surfaces such as cups, helmets, phone cases, gift boxes, mugs, bottles, and more. It eliminates complex traditional processes, enabling faster production with vivid, bright colors and low running cost.

Core Features

  • High-Quality Printheads: Uses three Epson I1600 or I3200 U1 printheads for reliable, sharp image output.
  • Color Configuration: CMYK + White + Varnish for vibrant colors and special effect finishes.
  • Wide Print Width: Up to 600 mm roll width for larger film prints.
  • Fast Print Speed: Approximately 1.8 – 4.5 m²/hour, balancing quality and efficiency.
  • Automatic Functions: Includes automatic paper feeding, collecting, and cleaning systems for smoother operation.
  • Laminating Support: Built-in silicone rubber roller laminating press helps secure film layers before transfer.
  • Software Compatibility: Works with PhotoPrint RIP for design handling and workflow control.

How It Works

The printer prints full-color graphics onto PET transfer film using UV-curable inks. After printing and optional lamination, the film is transferred to the target hard surface, creating bright, durable labels or decals suitable for a wide range of materials (metal, wood, glass, leather, plastic, ceramics, etc.).

U600 UV DTF Printer 2

Typical Uses

  • Custom stickers and labels
  • Gift packaging graphics
  • Advertising and promotional decals
  • Decorative films and hard-surface transfers

Technical Highlights (Key Parameters)

  • Model: GT-U600 UV DTF Printer
  • Printhead: Epson I1600U1 / I3200U1
  • Ink Colors: CMYK + White + Varnish
  • Print Width: 600 mm
  • Print Material: AB film (PET transfer film)
  • Software: PhotoPrint
  • Power: AC-220V / 110V 50/60 Hz
  • Negative pressure continuous ink supply system

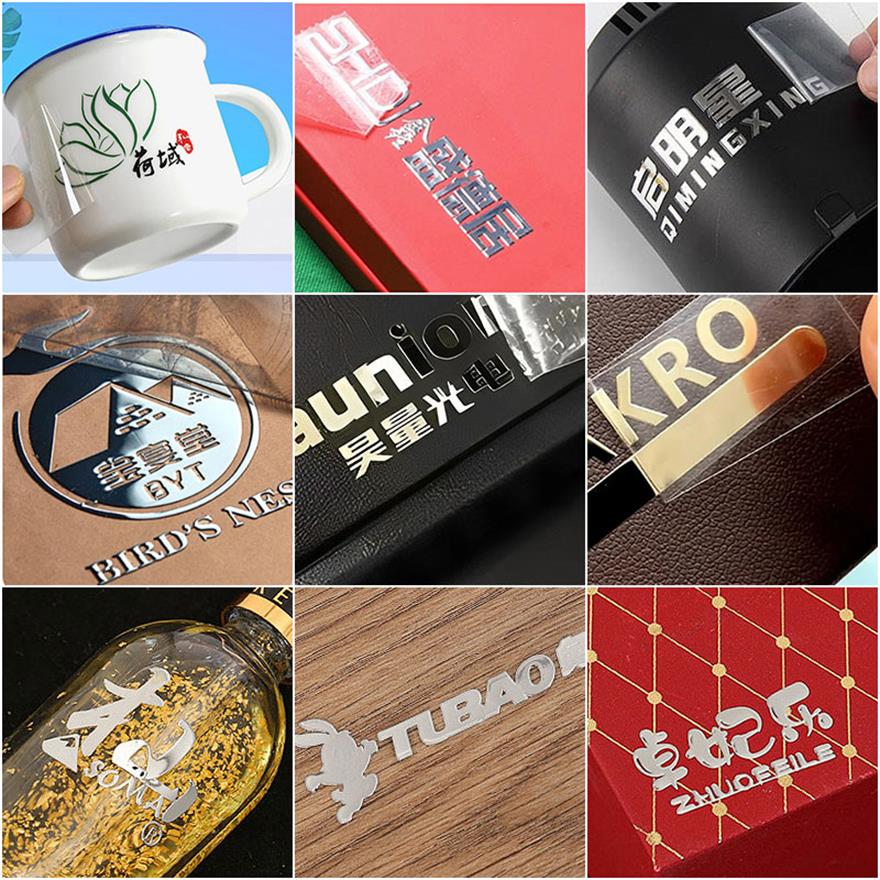

uv dtf printing samples

The U600 UV DTF Printer provides a practical and efficient solution for producing high-quality transfer graphics without the constraints of direct surface printing. By combining CMYK, white, and varnish layers with instant UV curing, it delivers vibrant colors, strong adhesion, and premium visual effects on a wide variety of materials and shapes.

uv dtf printing samples

With its stable roll-to-roll structure, professional printhead configuration, and streamlined workflow, the U600 is well suited for customization, promotional products, and small to medium batch production. It helps businesses expand application scenarios, reduce production complexity, and achieve consistent, high-value output with reliable performance.
